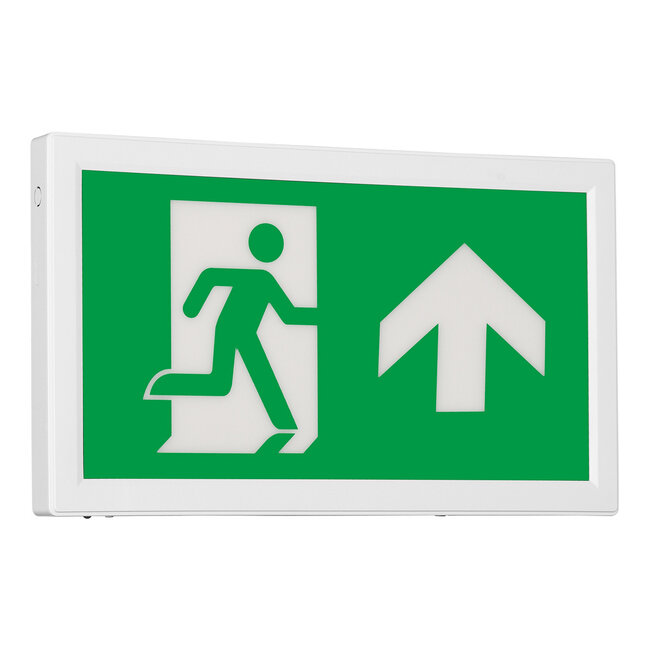

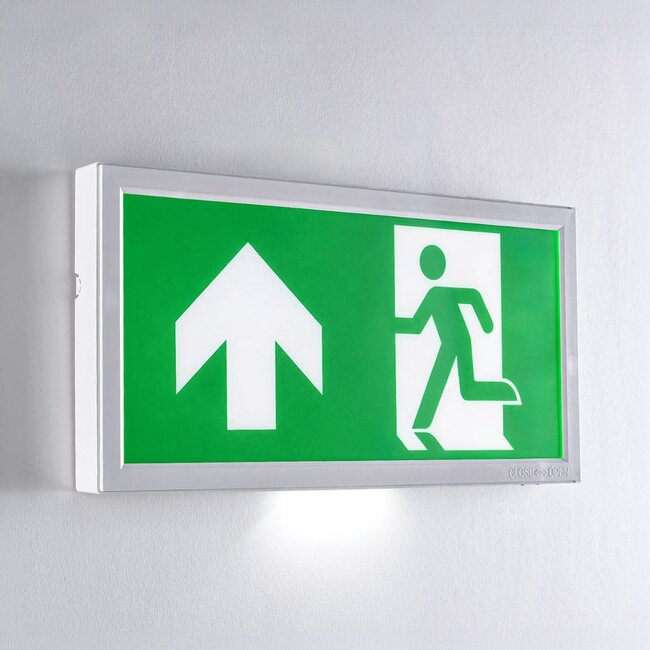

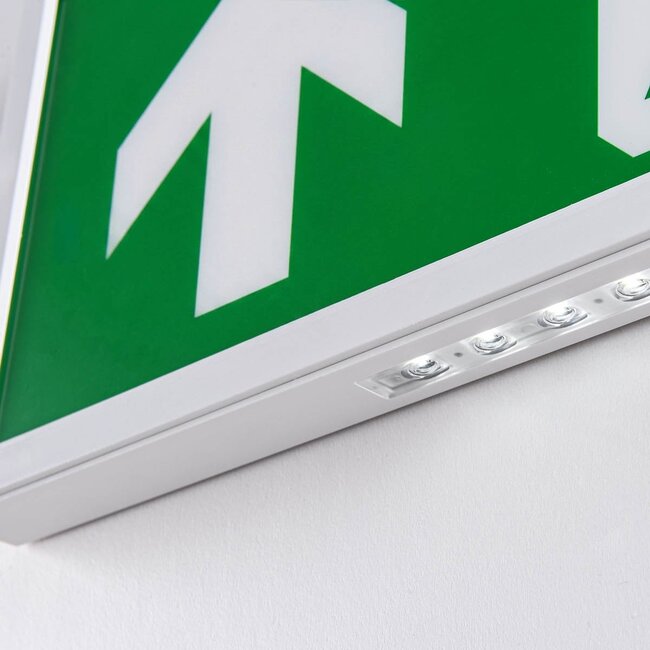

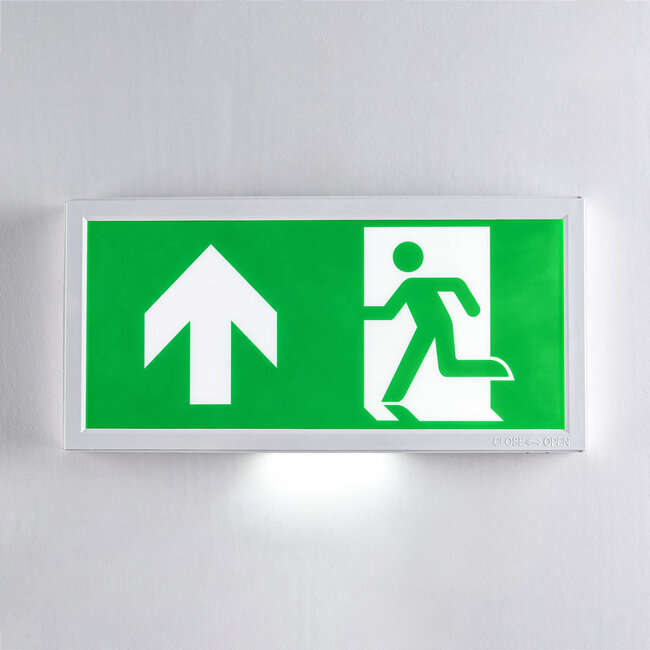

This LX006 surface-mounted emergency lighting fixture for wall mounting comes with a pre-mounted pictogram with an upward arrow. The luminaire is equipped with 16 high-quality 3.5-watt LEDs with a light output of 50 lumens (AC) and 48 lumens (DC) in a colour temperature of 6000K (cool white) and has a protection rating of IP20. The LX006 features a self-test, function test and endurance test. Please refer to the Manual for a detailed explanation of the various tests.
After the first 24 hours of charging, a full endurance test of three hours is performed. A self-test is performed on all products with a self-test and is performed after the first time the product is switched on. The fixture is equipped with a single two-colour LED indicator. This indicator is clearly visible for manual inspection and indicates the status of the module. The LED is permanently green or flashes green when conditions are normal. When the LED flashes red, there is a malfunction in the fixture.
The function tests are generated randomly and take place every 28 days. A function test is a 2-minute test that simulates a power failure and checks the operation of the emergency lighting from the battery power supply. The LED indicator flashes green slowly while the 2-minute function test is in progress. If a fault occurs during a function test, the local indicator light flashes red.
An endurance test simulates a power failure and takes place every 52 weeks. It also checks the operation of the emergency lighting from the battery power supply for the nominal duration of the module. The LED indicator flashes green rapidly while the endurance test is being performed. The battery must be fully charged before an endurance test can be started.
The luminaire can only be set to continuous (permanent lighting). The light from the luminaire also remains on when there is no power failure. When the luminaire no longer receives power from the mains, it will continue to operate for 3 hours on battery power. Three hours is usually sufficient for employees and visitors to leave a building and also falls within the legal standard.
All our emergency lighting models are CE certified and comply with the standards and requirements applicable in Europe. The housing and diffuser are made of high-quality plastic.
